Defender - Flywheel and Clutch

Engine <> Flywheel & Clutch <> Gearbox & Propshaft <> Axles, Suspension and Steering <> Brakes & Brake Controls <> Fuel, Exhaust, Emmission Systems <> Cooling & Heating <> Electrical, Washers-Wipers, Instruments <> Chassis, Subframes, Bodyshell, Fittings <> Facia, Trim, Seats and Fixings <> Nuts, Bolts and Screw etc.

Pedal Box Inspection Plate

Ref: 272713 / Price $23.95

Application: Defender

Pedal Box Inspection Plate Gasket

Ref: 272819 / Price $2.49

Application: Defender 90/110

Pivot Pin

Ref: 272712 / Price $45.95

Application: Defender Pivot Pin

Clutch Pedal Return Spring

Ref: 569701 / Price $2.45

Application: Defender to LA939891

Clutch Pedal Return Spring Assist Kit

Ref: DA1266 / Price $39.95

Application: Defender from LA939892

Clutch Pedal Return Spring

Ref: EDP7510L / Price $21.95

Application: Defender from LA939892

Bush

Ref: 272714 / Price $16.85

Application: Defender pedal bush

Flywheel Housing Drain Plug

Ref: UYP500090 / Price $1.75

Application: Defender Drain Plug, Flywheel Cover for 2.25 and 2.5 petrol, 2.5NA 2.5TD, 200 and 300TDI. Front Cover Drain Plug for the 2.5NA and 2.5TD. Superceded from ERC7295

Set Screw - 3/8UNF X 3/4

Ref: SH606061L / Price $1.49

Application: Defender, Clutch Pressure Plate to Flywheel V8

Clutch Pressure Plate

Ref: 576557G / Price $139.95

Application: Defender early 2.25, and 2.5 petrol models. 9 I/2" diameter clutch plate, Quinton Hazell (QP). Use with 8510307

Clutch Pressure Plate 'Britpart'

Ref: 576557 / Price $115.95

Application: Late Series IIa and Series III for 9 I/2" diameter clutch plate. For use with full synchromesh gearbox

Clutch Plate 2.25 Petrol

Ref: 8510307G / Price $134.95

Application: Defender 2.25L and 2.5L Petrol - S/s from FRC2671, FTC3196, FTC4661

Clutch Pressure Plate - 'VALEO'

Ref: URB100760G / Price $109.95

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5

Clutch Pressure Plate 'AP'

Ref: URB100760BB / Price $114.95

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5

Clutch Friction Plate - Britpart

Ref: UQB000130 / Price $79.00

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Superceded from FTC1994. Friction material edge to edge approx 39mm. Diameter 9.5"

Clutch Friction Plate 'VALEO' HD

Ref: UQB000130G / Price $140.00

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Superceded from FTC1994. Friction material edge to edge approx 39mm - Stronger springs and stronger rivets than the UQB000130 - Diameter 9.5"

Clutch Friction Plate 'Valeo'

Ref: FTC148G / Price $125.95

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5. Friction material edge to edge approx 34mm

Clutch Friction Plate 'AP'

Ref: FTC148BB / Price $115.95

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Friction material edge to edge approx 34mm

Clutch Friction Plate 'Britpart'

Ref: FTC148 / Price $54.95

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Friction material edge to edge approx 34mm

Clutch Friction Plate 'Valeo'

Ref: UQB500030G / Price $129.95

Application: Defender - Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Friction material edge to edge approx 34mm - Valeo - 4 large springs with inner helper springs - Superceded from FTC2149 and FTC4204.

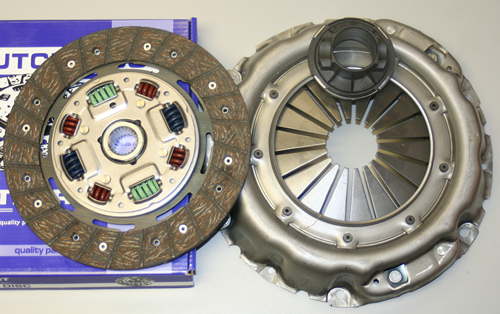

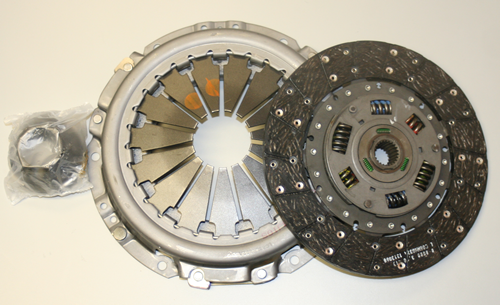

Clutch Kit - 'Valeo' - Heavy Duty 9.5"

Ref: LR009366HDV / Price $289.00

Application: Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Kit contains, friction plate, pressure plate and NSK release bearing - S/s from STC8358

Clutch Kit - 'Valeo' - 9.5"

Ref: LR009366G / Price $279.00

Application: Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Kit contains, friction plate, pressure plate and NSK release bearing - S/s from STC8358

Clutch Kit - 'AP' 9.5"

Ref: LR009366BB / Price $239.95

Application: Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Kit contains, friction plate, pressure plate and release bearing - S/s from STC8358

Clutch Kit - 'Britpart' 9.5"

Ref: LR009366 / Price $184.95

Application: Fits all diesel 4 cylinders. 2.5NA, TD, 200TDI and 300 TDI not TD5 - Kit contains, friction plate, pressure plate and NSK release bearing - S/s from STC8358

Clutch Kit 'AP'

Ref: 8510310 / Price $320.00

Application: Defender V8 and NAS - Pressure Plate and Friction Disc only, now includes throwout bearing

Clutch Pressure Plate

Ref: 576476G / Price $189.95

Application: Defender 1983 onwards manual V8 Twin Carb and EFI and NAS. AP Driveline works with FRC9733 and 8510308

Clutch Plate 3.5 V8 Twin Carb

Ref: FRC9773G / Price $119.95

Application: Series 109 3.5 V8 as well as early Defender and Range Rover Classic, diameter 10.5" by Quinton Hazell (QP)

Clutch Driven Plate - V8 EFI

Ref: 8510308 / Price $106.95

Application: Defender 1987> 10.5" plate S/s of FTC4662. FTC160

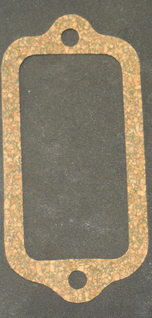

Timing Cover Gasket

Ref: 50216 / Price $1.90

Application: Defender 2.5NA to MA962814 Flywheel Housing Timing Cover Gasket

Ring Gear 'OE'

Ref: 568431 / Price $99.00

Application: Defender 2.25 diesel, 2.5NA, 2.5TD and 200TDI and 300TDI

Locating Dowel - Flywheel

Ref: 502116 / Price $2.45

Application: Defender 2.25, 2.5L and 200/300 TDI

Bolt - Flywheel to Crankshaft

Ref: ERR4574 / Price $6.95

Application: Defender 2.25 and 2.5 Petrol, 2.5NA, 2.5TD, 200 and 300TDI - Superceded from ERC6551

Bush - Flywheel

Ref: LFB500050 / Price $8.25

Application: Defender 2.25 petrol and diesel, 2.5NA, 2.5TD and 2.5 200 and 300 TDI - Supercedes from 8566L

Bush - Flywheel and Crankshaft

Ref: 549911 / Price $7.25

Application: Defender V8

Clutch Release Bearing Heavy Duty - Aluminum Billet

Ref: FTC5200HD / Price $109.95

Application: Series 109 Stage One, Defender 1987> 2.25L Petrol, 200 & 300 TDI, Twin Carb V8, for LT 77 / 85 and R380, V8. Superceded from FRC9568

Clutch Release Bearing

Ref: FTC5200G / Price $31.95

Application: Series 109 Stage One, Defender 1987> 2.25L Petrol, 200 & 300 TDI, Twin Carb V8, for LT 77 / 85 and R380, V8
Manufactured by NSK. For series 4 and 6 cylinder engines use FRC9568

Clutch Release Bearing

Ref: FTC5200 / Price $19.95

Application: Defender 1987> 2.25L Petrol, 200 & 300 TDI, Twin Carb V8, for LT 77 / 85 and R380, V8

Clutch Release Bearing

Ref: UTJ100210 / Price $42.95

Application: Defender - Used with the shorter bellhousing 'stumpy' - Also used on the 2.5 Petrol and Diesel with the R380 gearbox

Pad - Clutch Release Lever Slipper

Ref: FRC5255 / Price $1.25

Application: Defender - LT77 4 Cylinder and R380 4 Cylinder TDI

Pivot Plate - LT77

Ref: FRC5180 / Price $39.95

Application: Defender 4 Cylinder with LT77

Clutch Release Guide

Ref: FTC5218 / Price $79.95

Application: Clutch release bearing guide for R380 4 cylinder TDI models

Clutch Release Lever Arm 'OE'

Ref: FTC2957G / Price $26.95

Application: Defender LT77 Gearbox up to LA939975, R380 TDI, S/s from FRC3326

Clutch Release Lever Arm

Ref: FTC2957HDKIT / Price $36.95

Application: Defender LT77 Gearbox up to LA939975, R380 TDI, S/s from FRC3326 - Includes slippers, clips and pilot bush

Clutch Release Lever Arm

Ref: FTC2957 / Price $14.95

Application: Defender LT77 Gearbox up to LA939975, R380 TDI, S/s from FRC3326

Clutch Release Lever Arm Kit

Ref: 576137KIT / Price $109.95

Application: Defender V8

Clutch Release Lever Arm 'OE'

Ref: 576137 / Price $78.95

Application: Defender V8

Rod - Push

Ref: FRC3417 / Price $22.95

Application: 4 speed LT77 5 speed box

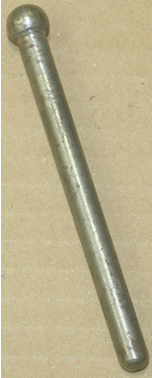

Rod - Push

Ref: FTC3912 / Price $24.80

Application: TDI to (G) 56A 0669086K

Rod - Push

Ref: FTC5199 / Price $15.50

Application: TDI from (G) 56A 0669087K

Nylon Insert - Clutch Release Lever Arm

Ref: 571161 / Price $6.75

Application: Defender V8

Clip

Ref: 571163 / Price $2.55

Application: Defender

Staple

Ref: 576203 / Price $0.89

Application: Clutch mechanism throw out bearing - V8

Staple - TDI

Ref: FRC3416 / Price $0.89

Application: Clutch mechanism throw out bearing - 2.5 petrol and diesel NA with R380, 200/300TDI

Clip - Clutch Release

Ref: 576723 / Price $4.35

Application: V8

Clip - Clutch Release

Ref: FRC3327 / Price $0.90

Application: Defender 4 cylinder models

Clutch Alignment Tool

Ref: TLS3363 / Price $9.99

Application: Defender and Range Rover use with FRC9733 not TDI

Adaptor

Ref: 139082 / Price $8.95

Application: Defender Clutch Master Cylinder Adapter - 3/8" UNF male to 7/16" UNF female - use copper washer 233220 to seal

Adaptor Bolt - 2007>

Ref: SYG500020G / Price $9.45

Application: Defender 2007 onwards

Clutch Line Banjo

Ref: SYG500030G / Price $13.75

Application: Defender 2007 onwards

Clutch Master Cylinder - "GIRLING"

Ref: STC500100GIRLING / Price:$164.95

Application: Series 3 and Defender. Can be retro fitted to Series 2A. Description: Clutch master cylinder from GIRLING. Bore diameter 3/4" (19mm). Superceded from 550732 - Rebuild Kit 8G8837L superceded to STC500090

Clutch Master Cylinder - TRW

Ref: STC500100G / Price $63.37

Application: Defender 1983 to XA178602. Clutch master cylinder by
Lucas - TRW. Bore diameter 3/4" (19mm) - Superceded from 550732 and STC100411 - Use rebuild kit STC500090

Clutch Master Cylinder

Ref: STC500100 / Price:$26.95

Application: Defender 1983 to XA178602. Can be retro fitted to Series 2A. Description: Aftermarket Clutch master cylinder from Allmakes. Bore diameter 3/4" (19mm) - Superceded from 550732 and STC100411 - Use rebuild kit STC500090

Clutch Master Rebuild Kit "TRW"

Ref: STC500090G / Price $22.50

CV Rebuild Kit superceded from 8G8837L

Clutch Master Rebuild Kit

Ref: STC500090 / Price $4.00

CV Rebuild Kit superceded from 8G8837L

Cap - Fluid Reservoir

Ref: SJL500030 / Price $5.25

Application: To fit STC500100 - Superceded from STC976

Pipe Assy - Clutch

Ref: NRC9595 / Price $28.95

Application: Defender - 4 cylinder

Pipe Assy - Clutch

Ref: 577643 / Price $25.90

Application: Defender - V8

Clutch Flex Hose

Ref: RTC4425 / Price $11.95

Application: Defender - Four cylinder engines.
Description: Replacement flexible clutch hose, overall length 13.0". Also used on Defender 200TDI to LA939975 - Superceded from NRC7139

Hose - Clutch

Ref: NRC2211 / Price $13.45

Application: Defender V8 and TD5

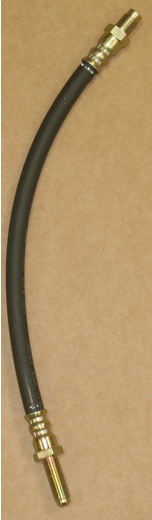

Clutch Flex Hose

Ref: NTC9055 / Price $9.95

Application: Defender - 300TDI from MA939976

Clutch Slave Cylinder Series 3 and Defender 4 cylinder - DELPHI

Ref: 591231G / Price: $48.95

Application: Series 3 four and six cylinder engines. Defender four cylinder engines in conjunction with LT77 gearbox, up to approximately 1994. Delphi PJH120 clutch slave cylinder with cast iron body. Approximate dimensions: Overall length 115mm, bore 22mm (7/8"), mounting centers 63mm. Use hose RTC4425 or RTC5940

Clutch Slave Cylinder Series 3 and Defender 4 cylinder 'TRW'

Ref: 591231T / Price: $54.95

Application: Defender four cylinder engines in conjunction with LT77 gearbox, up to approximately 1994. 'TRW' clutch slave cylinder with aluminium body. Approximate dimensions: Overall length 115mm, bore 22mm (7/8"), mounting centers 63mm. Use hose RTC4425 or RTC5940

Clutch Slave Cylinder Series 3 and Defender 4 cylinder

Ref: 591231 / Price: $20.30

Application: Defender four cylinder engines in conjunction with LT77 gearbox, up to approximately 1994. Aftermarket clutch slave cylinder with aluminium body. Approximate dimensions: Overall length 115mm, bore 22mm (7/8"), mounting centers 63mm. Use hose RTC4425 or RTC5940

Slave Cylinder Rebuild Kit

Ref: 8G8600 / Price $5.62

Application: Slave Cylinder 591231

Clutch Slave Cylinder

Ref: TKC2786L / Price $18.95

Application: Defender 5 speed LT77. Superceded from AEU1128

Clutch Slave Cylinder - Lockheed

Ref: FTC5071G / Price $73.95

Application: Stage One V8, Defender 90 and 110 V8 with LT77 5 speed, LT85 & R380 - V8. Fits all NAS manual defenders 90 & 110 - Cast Iron - Supercedes from UKC8677L - Male Fitting 7/16" X 20

Clutch Slave Cylinder

Ref: FTC5071 / Price $22.95

Application: Stage One V8, Defender 90 and 110 V8 with LT77 5 speed, LT85 & R380 - V8. Fits all NAS manual defenders 90 & 110 - Cast Iron - Supercedes from UKC8677L - Male Fitting 7/16" X 20

Slave Cylinder Repair Kit - Allmakes

Ref: BHM7063L / Price $7.95

Application: To rebuild slave cylinder FTC5071

Clutch Slave Cylinder - Lockheed

Ref: FTC5072G / Price: $74.95

Application: The following vehicle when fitted with R380 gearbox. NAS Discovery I, Defender 300TDi.
Description: Lockheed Delphi LL15965 clutch slave cylinder. Superceded from FTC3911

Clutch Slave Cylinder - 'TRW'

Ref: FTC5072T / Price: $39.95

Application: The following vehicle when fitted with R380 gearbox. NAS Discovery I, Defender 300TDi.
Description: 'TRW' clutch slave cylinder. Superceded from FTC3911
