  Series ignition - Page 1 <> Page 2 <> Page 3



  Distributor 45D equivalent
  Ref: ETC5835 / Price $89.95
  Application: Series 2.25 II and III - The Lucas distributor is no longer available, replacement from Allmakes, Britpart or Bearmach


  Distributor 45D equivalent - Electronic


Ref: ETC5835EBLACK / Price $124.95


  Application: Series 2.25 II and III - The Lucas distributor is no longer available, replacement from Britpart - 45D equivalent installed with electronic ignition


  Electronic Ignition Kit - 45D
  Ref: ETC5835K / Price $77.00
  Application: 45D only - designed to work with the original coil - PRC9858 - although recommended that a brand new coil be fitted. Britpart

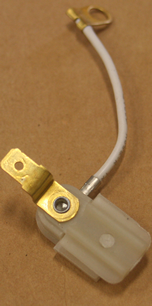

  Terminal and Lead Assembly 25D
  Ref: 600329 / Price $16.95
  Application: Series up to Suffix C - Superceded from 511086


  Distributor 4 Cylinder 'OE' - 'Ducellier' Copy
  Ref:  ERC6986 / Price: $222.00
  Application: All Series 2A and Series 3 four cylinder petrol engines. Also 90/110 2.25 petrol engines. Ducelier now NLA



  Distributor Coupling
  Ref: 549611 / Price $68.95
  Application: Series - Lucas 25D and 45D


  Distributor Cork Washer
  Ref: 52278 / Price $0.75
  Application: Series (all)


  Distributor Adapter Gasket
  Ref ETC4616 / Price $1.85
  Application: Series 2.25 fitted to suffix C and D onwards S/s of 247212


  Genuine HT Lead Set Series II and IIa
  Ref: 587701 / Price $41.95
  Application: Genuine HT Lead set for Series II and IIa
This HT set has a longer coil lead than the series III lead set ERC3256
Genuine Land Rover Part


  HT Lead Set Series III 'OE'
  Ref ERC3256 / Price $17.95
  Application: Replacement HT Hypalon Lead set for Series III


  HT Lead Set Series III - Lucas
  Ref ERC3256G / Price $37.95
  Application: Replacement HT Hypalon Lead set for Series III


  Ignition Lead Set 6 Cylinder 'OE'
  Ref ERC2523 / Price $29.95
  Application: Series 6 Cylinder


  Ignition Leads Set - Lucas
  Ref: RTC6551LUCAS / Price $44.95


Application: Stage One V8
Description: High quality Double Silicone set from Lucas- High Temp Suppression Cable - Superceded from ERC9615



  Ignition Leads Set 'OE'
  Ref: RTC6551B / Price $36.50


Application: Stage One V8, 3.9L
Description: High quality OE Silicone replacement set from Britpart - High Temp Suppression Cable 7mm



  Service Kit for Lucas 25D Distributor
  Ref:  DISTSERVKIT01 / Price: $36.95


Application: Lucas 25D 4cylinder distributor as fitted to Series 2A and early Series 3 petrol engines. Description: Kit containing Intermotor or Lucas as available - cap - 566859G, rotor arm - RTC3612, contact breakers (points) - RTC3270 and condensor - RTC3472. See below for specification of kit components.



  Service Kit for Lucas 45D Distributor
  Ref:  DISTSERVKIT02 / Price: $48.95
  Application: Application: Lucas 45D 4cylinder distributor as fitted to Series 3 petrol engines. Description: Kit containing cap - RTC3278, rotor arm - RTC3614, contact breakers (points) - RTC6627 and condensor - RTC6621. See below for specification of kit components.


Service Kit for Ducellier Distributor
Ref:  DISTSERVKIT03 / Price: $26.75
Application: Ducellier 4cylinder distributor as fitted to Series 2A and Series 3 petrol engines. Description: Kit containing cap - RTC4932, rotor arm - RTC4933, contact breakers (points) - RTC6625 and condensor - RTC6620. See below for specification of kit components.


  Distributor Cap 25D early screw in type
  Ref: 600328 / Price $29.95
  Application: Lucas 25D 4cylinder distributor as fitted to Series 2A. Description: Early distributor cap with HT leads kept attached using screw in acorn nuts. For those that want originality. Approximate dimensions: overall diameter 77mm (3.03 inches), height 74mm (2.91 inches).


  Distributor Cap 'Intermotor' 25D 'OE'
  Ref:  566859G / Price: $13.50
  Application: For the 25D 4cylinder distributor as fitted to Series 2A and early Series 3 petrol engines. Description: Boxed distributor cap with 'push in' HT leads. Approximate dimensions: overall diameter 77mm (3.03 inches), height 74mm (2.91 inches).


Distributor Cap 25D
Ref:  566859 / Price: $9.70
Application: For the 25D 4cylinder distributor as fitted to Series 2A and early Series 3 petrol engines. Description: Boxed distributor cap with 'push in' HT leads. Approximate dimensions: overall diameter 77mm (3.03 inches), height 74mm (2.91 inches).


Distributor Cap 45D OE 'LUCAS'
Ref: RTC3278G / Price: $28.50

Application: Intermotor 45D 4cylinder distributor as fitted to Series 3 petrol engines. Description: Boxed distributor cap with 'push in' HT leads. Approximate dimensions: overall diameter 73.5mm (2.9 inches), height 72mm (2.83 inches)

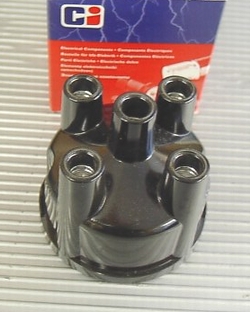

Distributor Cap Ducellier 4 Cylinder
Ref: RTC4932 / Price: $13.90

Application: Ducellier 4cylinder distributor as fitted to Series 3 petrol engines. Description: Commercial Ignition boxed distributor cap with 'push in' HT leads. Approximate dimensions: overall diameter 69.5mm (2.74 inches), height 63.5mm (2.5 inches). 'Intermotor'



Distributor Cap 6 Cyl
Ref: 605544 / Price $14.75
Application: Series 6 cylinder distributor cap
Description: Aftermarket cap with push in HT leads. Approx dimensions: overall diameter
3 3/16", height 3 1/16"


Rotor Arm 25D
Ref: RTC3612 / Price: $9.90
Application: Fits Lucas 25D 4cylinder distributor as fitted to Series I Series 2 and 2A and early Series 3 petrol engines. Description: rotor arm. Approximate dimensions: shaft diameter 14.5mm (0.57 inches), height 16.5mm (0.65 inches)


Rotor Arm Britpart 45D
Ref: RTC3614 / Price: $4.50
Application: Lucas 45D 4cylinder distributor as fitted to Series 3 petrol engines. Description: Lucas boxed rotor arm. Approximate dimensions: shaft diameter 14.5mm (0.57 inches), height 20mm (0.79 inches.


Rotor Arm Ducellier
Ref:  RTC4933 / Price: $2.99

Application: Ducellier 4cylinder distributor as fitted to Series 3 petrol engines. Description: Genuine rotor arm. Approximate dimensions: shaft diameter 14.5mm (0.57 inches), height 36.5mm (1.44 inches).



Rotor Arm - 6 Cylinder
Ref: RTC4542 / Price $4.95
Application: Series 6 Cylinder Model - 'Intermotor'


Rotor Arm
Ref: RTC6630 / Price $9.95
Application: Excellent Quality Rotor Arm from FACET fits Stage One 109 and 101FC. Pre - electronic ignition, replaces RTC3613 (not the same as STC1857 as shaft hole depth less on RTC6630)


Contact Breakers 25D
Ref:  RTC3270G / Price: $8.75
Application: Lucas 25D 4cylinder distributor as fitted to Series 1, 2 and 2A and early Series 3 petrol engines. Description: Boxed contact breaker set also known as 'points'. Also fits 2.6L


Contact Breakers 45D - Lucas
Ref:  RTC364G / Price: $7.95
Application: For 45D 4cylinder distributor as fitted to Series 3 petrol engines. Description: Contact breaker set (or points) with fixed contacts and red insulator. Supplied with wiper felt. - Lucas


Contact Breakers Lucas 45D
Ref:  RTC6627 / Price: $6.50
Application: Lucas 45D 4cylinder distributor as fitted to Series 3 petrol engines. Description: Lucas boxed contact breaker set (or points) with sliding contacts and blue insulator. Supplied with wiper felt.



Contact Breakers Ducellier
Ref:  RTC6625 / Price: $4.16
Application: Ducellier 4cylinder distributor as fitted to Series 3 petrol engines. Description: Genuine contact breaker set (or points).
Also have a small number of old new stock aftermarket points sell $2.99


Contact Set 24 Volt
Ref: RTC6622 / Price $4.95
Application: Series 4 cylinder 24 volt


Contact Set - Intermotor V8
Ref: RTC6623G / Price $9.50
Application: Stage One V8 - Superceded from 608158


Condensor 25D - Lucas
Ref:  RTC3472LUCAS / Price: $6.96
Application: Lucas 25D 4cylinder distributor as fitted to Series 2A and early Series 3 petrol engines. Description: Approximate dimensions: overall diameter 17mm (0.67 inches), lead 57mm (2.24 inches). Also Stage One V8 and 2.6L


Condensor 45D - Genuine
Ref: RTC6621GEN / Price: $7.95
Application: Description: Condensor with two leads. Approximate dimensions: overall diameter 17mm (0.67 inches), orange lead 55mm (2.17 inches), black lead 430mm (16.9 inches.


Condensor 45D - Lucas Brand
Ref: RTC3471G / Price: $6.50
Application: Description: Condensor with two leads. Series III post 1980


Condensor Ducellier
Ref: RTC6620 / Price: $4.95

Application: Ducellier 4cylinder distributor as fitted to Series 3 petrol engines. Description: Allmakes boxed condensor supplied with mounting clamp. Approximate dimensions: overall diameter 17mm (0.67 inches), length of condensor 39mm (1.54 inches), lead 150mm (5.91 inches.





Ignition Coil Lucas
Ref: PRC9858LUCAS / Price $42.95

Application: Series 2A and Series 3 4-cylinder and 6-cylinder petrol engines. Description: Intermotor ignition coil.





Ignition Coil - Allmakes
Ref: PRC9858 / Price $26.95
Application: Series (all) Series 2A and Series 3 4-cylinder and 6-cylinder petrol engines.


Ignition Coil Lucas
Ref: 8510047G / Price $39.95

Application: Series Stage One V8 - Description: Lucas DLB102 ignition coil. S/s from 573038





Ignition Coil - Allmakes
Ref: 8510047 / Price $20.95
Application: Series Stage One V8 - Description: Lucas DLB102 ignition coil. S/s from 573038



    Series ignition - Page 1 <> Page 2 <> Page 3
