Series Trucks - Cooling & Heating

Page 1

  Engine <> Flywheel & Clutch <> Gearbox & Propshaft <> Axles Suspension and Steering <> Brakes & Brake Controls <> Fuel, Exhaust, Emmission Systems <> Cooling & Heating <> Electrical, Washers-Wipers, Instruments <> Chassis, Subframes, Bodyshell, Fittings <> Facia, Trim, Seats and Fixings <> Screws, Nuts, Bolts
  Series - Cooling & Heating - Page 1 <> Page 2



  Radiator
  Ref: 577609 / Price $285.00


Application: Primarily Series III - but also used on II and IIa with series III hoses and shrouding - due to size and weight extra shipping may have to be added depending on service chosen.





  Heater Core
  Ref: LE11 / Price $129.95
  Application: Later IIa and Series III - Also same part as DA 2155
Heater Core


  Heater Control Plate - LHD - Genuine
  Ref: 347586 / Price
  Application: Series III & Defender


  Heater Control Plate - RHD - Allmakes
  Ref: 346924 / Price $
  Application: Series III & Defender


  Cable Assembly - Heater Flap Operation
  Ref: BTR8736 / Price $64.95
  Application: Series (all) heater flap operation S/s of 347939


  Cable Assembly - Heater Water Valve Operation - NLA
  Ref: 347940 / Price $20.48
  Application: Series (all) - Genuine


  Hose - Demist S2a - Genuine
  Ref: 345581 / Price $3.53
  Application: Demist hose for series IIa - length 20 inches, can be joined together for longer runs - 1 1/2" ID

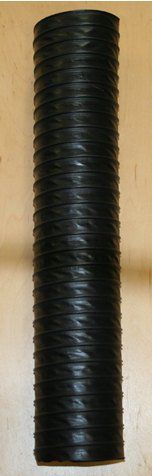

  Air Delivery Hose
  Ref: 346999 / Price $42.60
  Application: Series (all), hose from side air vent to heater


  Fanbelt Series IIa and III engines
  Ref: 563132 / Price $3.75
  Application: Series 2A and Series 3 2.25 litre engines, both petrol and diesel. Description: 'V' belt driving water pump and dynamo or alternator on the above applications. This replacement belt measures 10mm wide by 1050mm long.


  Fanbelt Series 2A and Series 3 Four Cylinder Engines - cogged 'DAYCO'
  Ref: 563132D / Price: $6.95
  Application: Series 2A and Series 3 2.25 litre engines, both petrol and diesel. Description: 'V' belt driving water pump and dynamo or alternator on the above applications. Cogged for extra grip, this replacement belt measures 10mm wide by 1050mm long.


  Heater Hose Kit LHD
  Ref: HEATERHOSEKIT02 / Price $30.99


Application: Series 4 cylinder petrol (gasolene), left hand drive.
Description: Set of 4 hoses and 8 hose clips. Hose part numbers 2x 577292, 594629 & 594636.





  Heater Hose Kit S3 RHD
  Ref: HEATERHOSEKIT01 / Price $24.95
  Application: Series 3 4 cylinder petrol (gasolene), right hand drive.
Description: Set of 3 hoses and 6 hose clips. Hose part numbers 577292, 594629 & 594632.



  Heater Hose
  Ref 594636 / Price $3.92
  Application: series 2.25 left hand drive


  Heater Hose
  Ref: 577292 / Price $5.50
  Application: series late IIa and III left and right hand drive.


  Heater Hose
  Ref: 594632 / Price $6.45
  Application: Series III RHD return from heater core to block


  Heater Hose
  Ref: 594629 / Price $3.45
  Application: Series III Hose between heater water valve and metal heater pipe both LHD and RHD


  Top Hose Series II & IIa 4 Cylinder
  Ref: 569955 / Price $5.02
  Early top hose for vehicles fitted with earlier radiator with large header tank. Description: Top hose between radiator and engine. Approximate dimensions: length around curve 27cm (10.5 inches). Internal diameter
1-1/16" and 1-5/16"


  Bottom Hose Series II & IIa
  Ref: 569956 / Price $5.90
  Early bottom hose for vehicles fitted with early radiator with large header tank. Description: Bottom hose between radiator and engine. Approximate dimensions: length around curves11.75 inches. Internal diameter 1-1/16" and 1-5/16"

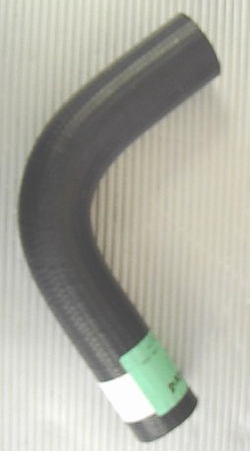

  Top Hose Series 3 4 Cylinder
  Ref:  577346 / Price: $6.25
  Application: Series 3 2.25 litre engines, both petrol and diesel. Also applicable to Series 2A four cylinder models which are fitted with the later radiator with narrow header tank. Description: Top hose between radiator and engine. Approximate dimensions: internal diameter 30.5mm (1. 3/16 inches), length around curve 27cm (10.5 inches).
Top Hose Late

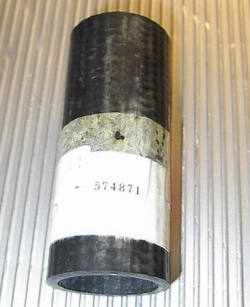

  Bypass Hose Series 2A and Series 3
  Ref:  574871 / Price: $2.14


Application: Series 2A and Series 3 2.25 litre engines, both petrol and diesel. Description: Replacement hose between water pump and thermostat housing. Approximate dimensions: internal diameter 30.5mm (1.3/16 inches), length 95mm (3.75 inches).

Bypass Hose


  Bottom Hose Series 3
  Ref:  NRC3115 / Price: $6.12


Application: Series 3 2.25 litre engines, both petrol and diesel. Also applicable to Series 2A four cylinder models which are fitted with the later radiator with narrow header tank. Description: Replacement bottom hose between radiator and engine. Approximate dimensions: internal diameter 33.5mm (1. 5/16 inches), length around curve 33cm (13 inches).


    Top Hose 6 Cylinder
Ref: 624363 / Price $

Application: Series 2.6 Liter Engine
Length: 12 1/2" internal diameter 1 3/8"



Bottom Hose 6 Cylinder
Ref: 624364 / Price $
Application: Series 2.6 Liter Engine


Bottom Hose V8 109 - Special Order
Ref: NRC3206 / Price $
Application: Series III Stage One 109 V8


Water Pump Series One
Ref: 269974 / Price $147.95
Application: Series One Petrol


Replacement Water Pump S2a and S3
Ref:  STC3758 / Price: $47.00

Replacement water pump for 2.25 litre petrol and diesel engines. This is the '9 hole' pump for civillian Land Rovers. Military Land Rovers quite often have a '7 hole' pump. The holes refer to the mounting holes for the pump. Supplied with gasket. Application: Series 2A (not Series 2) and Series 3 2.25 litre engines. Approximate dimensions: 27cm x 14cm, height of spindle 10cm.





Water Pump Repair Kit
Ref: RTC3072 / Price $24.95
Rebuild Kit for STC3758


Water Pump Gasket
Ref: 538671 / Price $1.44
Replacement water pump gasket 9 hole


Military Water Pump
Ref: RTC6327 / Price $89.99
Application: Military 7 hole pump with gasket


Military Water Pump Gasket
Ref: ERC5655 / Price $1.25
Replacement water pump gasket 7hole


Water Pump - Viscous Type
Ref: STC1610 / Price $98.95
Application: Stage One V8 viscous type - gasket included


Viscous Unit
Ref: ERC2849 / Price $169.95
Application: Stage One V8 use with pump STC1610


Water Pump V8
Ref: STC1611 / Price $99.95
Application: Series III Stage One 109 V8 - Gasket included


Water Pump Pulley
Ref: 530890 / Price $21.64
Application: Series (all) 1961 - 1984
