Series Trucks - Axles, Suspension and Steering

Page 2
  Engine <> Flywheel & Clutch <> Gearbox & Propshaft <> Axles Suspension and Steering <> Brakes & Brake Controls <> Fuel, Exhaust, Emmission Systems <> Cooling & Heating <> Electrical, Washers-Wipers, Instruments <> Chassis, Subframes, Bodyshell, Fittings <> Facia, Trim, Seats and Fixings <> Screws, Nuts, Bolts
  Series axles, suspension & steering -
Page 1
<> Page 2 <> Page 3 <> Page 4 <> Page 5




  Axle Breather - Brass
  Ref: 515845 / Price $8.50

Application: Series (all) - Brass


  Remote Axle Breather
  Ref: 595473 / Price $15.50
  Application: Series - Hose Length 40"


  Axle Breather Banjo Bolt
  Ref: 595478G / Price $7.95
  Application: Series


  Stub Axle - Front
  Ref: 599827 / Price $58.95
  Application: Series II, IIa and III up to July 1980 - Use Bolt #237339


  Stub Axle - Rear


Ref: 599828 / Price $168.95


  Application: Series II, IIa and III up to July 1980, 88" and 109" - Use Bolt #237339


  Stub Axle - Rear
  Ref: FRC3132 / Price $65.95
  Application: Series III - Rear - Post October 1980 - Superceded from FRC3924


  Stub Axle Distance Piece 'OE'
  Ref: 599698 / Price $8.95
  Application: Series 88 and 109 up to Sept 1980


  Gasket - Swivel Pin Housing
  Ref: 277289 / Price $1.29


Application: Series II, IIa and III
Description: Gasket between swivel pin housing and stub axle. S/s from GFG108



  Gasket - Stub Axle Rear
  Ref: 500978 / Price $0.89
  Application: Series (all) to 1984
Description: Gasket between rear stub axle and rear axle


  Hub Assembly
  Ref: 576844 / Price $129.00
  Application: Series 1971 onwards - Can be used on earlier trucks but the drum would also need changing to accomodate the larger wheel studs


  Hub Bearing and Oil Seal Kit - 'NTN' up to September 1980
  Ref: RTC3534G / Price $106.95
  Application: Series 88 & 109 up to September 1980
Description: All parts for the rebuild of one hub assembly using NTN bearings and a Corteco oil seal.



  Hub Bearing and Oil Seal Kit - up to September 1980
  Ref: RTC3534 / Price $40.95
  Application: Series 88 & 109 up to September 1980
Description: All parts for the rebuild of one hub assembly.



  Hub Bearing and Oil Seal Kit - Timken/Corteco from October 1980
  Ref: RTC3537G / Price $55.95
  Application: Series 88 & 109 from October 1980
Description: All parts for the rebuild of one hub assembly using Timken bearings and Corteco oil seal.



  Hub Bearing and Oil Seal Kit - from October 1980
  Ref: RTC3537 / Price $39.95
  Application: Series 88 & 109 from October 1980
Description: All parts for the rebuild of one hub assembly.



  Hub Seal - Rear - Series One
  Ref: GHS166 / Price $4.68
  Application: Series One Rear Hub Seal - Superceded from 522287, 236923



  Hub Oil Seal S2 + 3
  Ref: RTC3510G / Price $10.75
  Application: Series 2 - 3
High quality replacement seal from Corteco used on front and rear 88" hubs up to September 1980 and 109" front and rear hubs up to September 1980


  Hub Oil Seal S2 + 3 - LEATHER
  Ref: RTC3510L / Price $7.75
  Application: Series 2 - 3
High quality metal and leather replacement seal for the purist from Britpart used on front and rear 88" hubs up to September 1980 and 109" front and rear hubs up to September 1980


  Hub Oil Seal S2 + 3
  Ref: RTC3510 / Price $3.49
  Application: Series 2 - 3
Seal by 'Allmakes' used on front and rear 88" hubs up to September 1980 and 109" front and rear hubs up to September 1980


  Inner Hub Bearing
  Ref: RTC3416G / Price $47.95 - 'NTN'
  Application: Series 88 & 109 up to September 1980



  Inner Hub Bearing
  Ref: RTC3416 / Price $18.95
  Application: Series 88 & 109 up to September 1980



  Outer Hub Bearing
  Ref: RTC3426G / Price $40.95 - 'NTN'
  Application: Series 88 & 109 up to September 1980



  Outer Hub Bearing
  Ref: RTC3426 / Price $14.95
  Application: Series 88 & 109 up to September 1980



  Hub Oil Seal Series 3
  Ref: RTC3511G / Price $11.75
  Application: Series 3
Seal by 'Corteco' used on front and rear 88" from October 1980 and 109" front and rear hubs from October 1980


  Hub Oil Seal Series 3
  Ref: RTC3511 / Price $3.49
  Application: Series 3
Seal by 'Allmakes' used on front and rear 88" from October 1980 and 109" front and rear hubs from October 1980


  Hub Oil Seal
  Ref: FRC2308 / Price $8.75
  Application: Forward Control 101



  Bearing - Hub Front/Rear
  Ref: RTC3429G / Price $20.75 - Timken
  Ref: RTC3429 NLA - Use STC4382
  Application: Series III from October 1980. Highest quality aftermarket bearing by 'Timken'. Quality aftermarket bearing by Allmakes/DPI - 2 required for each hub, 4 per axle. Note:

The STC4382 (the later number) can be used in place of RTC3429 without an issue.
However RTC3429 (the old number) can not be used in place of STC4382 as RTC3429 is 1mm thicker.


Timken $20.75

STC4382 $11.95


  Key Washer
  Ref: 217352 Price $1.85
  Application: Series (all) from Allmakes



  Hub Lock Nut
  Ref: FRC8700G / Price $3.99


Application: Series (all)
Description: Hub nut




  Hub Lock Nut
  Ref: FRC8700 / Price $2.50


Application: Series (all)
Description: Hub nut




  Hub Nut Spanner
  Ref: 606435 / Price $10.95
  Application: Series (all) - UK manufactured


  Lock Washer
  Ref: 217353 / Price $0.89
  Application: Series (all)



  Gasket Hub Flange
  Ref: 231505 / Price $0.50
  Application: Series (all) Superceded from GFG106



  Felt Hub Seal
  Ref: RTC3515 / Price $1.40
  Application: Series 88" front and rear up to 1980 and S/s from GHS1002



  'O' Ring Hub Seal
  Ref: RTC3516 / Price $0.67
  Application: Front and Rear 109" excl 109V8 and 88" from October 1980
Description: Rubber 'O' Ring 1 13/16" OD



  Spiralox Ring - Front Hub
  Ref: 556445 / Price $0.55
  Application: Series III 109 and Series 88" from July 1980



  Spacer Ring - Front Hub
  Ref: 556628 / Price $3.75
  Application: Series III 109 and Series 88" from July 1980



  Circlip - Salisbury Axle
  Ref: 549473 / Price $0.75
  Application: Series 109 rear hubs, 88" from July 1980 & front hub 109V8



  Split Pin - Series
  Ref: PS608101L / Price $0.49
  Application: Series (all)



  Castle Nut
  Ref: 3259 / Price $1.75
  Application: series (all)



  Driving Member 88"
  Ref: 571235 / Price $24.95


Application: Series II and III up to June 1980





  Driving Member 88 and 109"
  Ref: 571711 / Price $18.50


Application: Series III 88" from 1980, 109" and 109 V8 up to September 1983





  Driving Member Bolt
  Ref: 215331 / Price $1.49
  Application: Series (all)


  Spring Washer - Driving Member Bolt
  Ref: WM600061L / Price $0.15
  Application: Series (all) and other aps


  Dust Cap
  Ref: 219098 / Price NLA
  Application: Series Trucks
Description: Axle Dust Cap


  Dust Cap
  Ref: 219098B / Price $2.50
  Application: Series Trucks
Description: Axle Dust Cap from Britpart


  Stud 9/16" (screw in)
  Ref: 561590 / Price $1.25
  Application: Series 1948 - 1971 uses lug nut 217361 or 576103

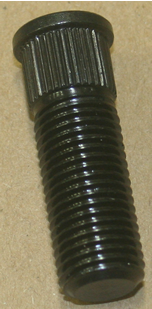

  Stud 9/16" (Push In)
  Ref: 561886 / Price $1.25
  Application: Series 1948 - 1971 uses lug nut 217361 or 576103 - Can be used to replace damaged hole for 561590


  Stud 16MM (push in)
  Ref: 576825 / Price $1.25
  Application: Series late IIa and III

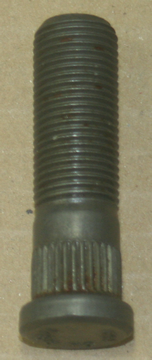

  Wheel Hub Stud - 60mm 'OE'
  Ref: FRC7577 / Price $11.73
  Application: Series for Wolf Rims


  Inner Tube - HD
  Ref: DA3000 / Price $29.95
  Application: Series (all) 700/750 X 16" rims. Fits tires 7" to 7.5" wide


  Lug Nut - 15/16
  Ref: 217361 / Price $1.15
  Application: Early Series 15/16" Lug Nut - Fits screw in stud 561590


  Lug Nut
  Ref: 576103 / Price $1.75
  Application: Series 1969 - 1971 - 1 1/16" Lug Nut - Fits screw in stud 561590

  Lug Nut OE 16MM
  Ref: RRD500010G / Price $2.50
  Application: Series III, Defender, Disco I (steel wheels) - Fits push in stud 576825


  Lug Nut - Aftermarket Allmakes 16MM
  Ref: RRD500010 / Price $1.20
  Application: Series III, Defender, Disco I (steel wheels) - Fits push in stud 576825


  Wheel Wrench - 15/16" Head
  Ref: 537179 / $24.50
  Application: Series (all) 1 1/16"
13" long. For Lug Nut 217361



  Wheel Wrench
  Ref: LR011870 / $7.95
  Application: Series (all) 1 1/16"
13" long. Fits 576103 and RRD500010



  Wheel Wrench - HD
  Ref: LR011870A / $13.95
  Application: Series (all) 1 1/16"
15.5" long. Fits 576103 and RRD500010 - Set further back from the rim, and angled unlike other models to eliminate skinned knuckles. Believe me I learned the hard way!
