  Series Trucks - Brakes and Brake Controls
Page 2
  Engine <> Flywheel & Clutch <> Gearbox & Propshaft <> Axles Suspension and Steering <> Brakes & Brake Controls <> Fuel, Exhaust, Emmission Systems <> Cooling & Heating <> Electrical, Washers-Wipers, Instruments <> Chassis, Subframes, Bodyshell, Fittings <> Facia, Trim, Seats and Fixings <> Screws, Nuts, Bolts

  Series Brakes Page 1 <> Page 2 <> Page 3



  Automec Brake Pipe Kit in Kunifer LHD
  Ref: GL5601 / Price $145.95
  Application: Series 88" 2a LHD
Complete single line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer RHD
  Ref: GB5601 / Price $145.95
  Application: Series 88" 2a RHD
Complete single line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer
  Ref: GL5602 / Price $135.00
  Application: Series 2a 109" LHD up to suffix F
Complete single line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer
  Ref: GB5602 / Price $135.00
  Application: Series 2a 109" RHD up to suffix F
Complete single line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer
  Ref: GL5609 / Price $239.00
  Application: Series 3 109" 2.25L and V8 Dual System LHD - Post 1980 for use with Brake Master NRC8690
Complete dual line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer
  Ref: GL5610 / Price $258.00
  Application: Late Series IIa and Series 3 88" LHD ALL UNF - For use with shuttle valve
Complete dual line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer
  Ref: GB5610 / Price $258.00
  Application: Late Series IIa and Series 3 88" RHD ALL UNF - For use with shuttle valve
Complete dual line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'

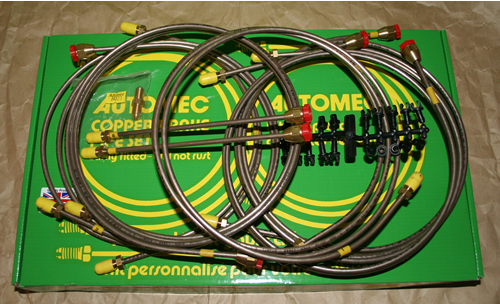

  Automec Brake Pipe Kit in Kunifer
  Ref: GL5617 / Price $279.00
  Application: Series 3 88" US spec LHD
Complete dual line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec' - Shuttle Valve not used


  Automec Brake Pipe Kit in Kunifer
  Ref: GB5597 / Price $199.95
  Application: Series III RHD 1975 - 1980 109" UNF prior to metric swich over
Complete dual line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer
  Ref: GL5597 / Price $199.95
  Application: Series III LHD 1975 - 1980 109" UNF prior to metric swich over
Complete dual line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec'


  Automec Brake Pipe Kit in Kunifer - RHD
  Ref: GB5661 / Price $219.95
  Application: Series 3 109" dual line system with shuttle valve 1975-81 Military 4 cylinder IMPERIAL RHD


  Automec Brake Pipe Kit in Kunifer - LHD
  Ref: GL5661 / Price $219.95
  Application: Series 3 109" dual line system with shuttle valve 1975-81 Military 4 cylinder IMPERIAL LHD


  Automec Brake Pipe Kit in Kunifer - LHD
  Ref: GL5615 / Price $235.95
  Application: Series III LHD Post July 1980 88" Metric and UNF Set
Complete dual line set of brake pipes and clips manufactured in copper/nickel alloy KUNIFER by 'Automec' DA7446


  Brake Line - Front RH
  Ref: HD0044 / Price $17.56
  Application: Front single line 88 and 109 up to June 1980. Equivalent of 592364
Automec copper/nickel alloy "Kunifer" GIves you peace of mind will never rust.


  Brake Line - Front LH
  Ref: HD0084 / Price $21.11
  Application: Front single line 88 and 109 up to June 1980. Equivalent of 565466
Automec copper/nickel alloy "Kunifer" GIves you peace of mind will never rust.


  Brake Line - Front LH Dual
  Ref: HR0066 / Price $20.21
  Application: Series optional brake dual system fitted to 1980 - Front LH from shuttle equivalent to 559102 - 3/8" female / 7/16" male


  Brake Line 88"
  Ref: 279418 / Price $13.95
  Application: Series 1958 - 1971, Line from 'T' to 'T' - Steel


  Brake Line - Rear Axle - short RH
  Ref: HF0024 / Price $24.95
  Application: Series II - III prior to 1980. Imperial System
Automec copper/nickel alloy "Kunifer" GIves you peace of mind will never rust.


  Brake Line - LH - Rear Wheel to 'T' junction
  Ref: 504517 / Price $19.25
  Application: Series II & IIA 88" and 109" using Rover Axle, not ENV or Salisbury - Genuine Land Rover - Steel Line


  Brake Line - Rear Axle - long LH
  Ref: HF0042 / Price $26.95
  Application: Series II - III prior to 1980. Imperial System 42" long.
Automec copper/nickel alloy "Kunifer" GIves you peace of mind will never rust.


  Brake Cylinder Connector Series 3 "Kunifer"
  Ref: NRC5347K / Price: $12.95
  Application: Series 109 all models and Series 88" from 1980 brake pipe connection between cylinders used on 11" drums.
Automec copper/nickel alloy "Kunifer" GIves you peace of mind will never rust. 15"


  Brake Cylinder Connector Series III
  Ref: NRC5347 / Price $8.50
  Application: Series 109 all models and Series 88" from 1980 brake pipe connection between cylinders used on 11" drums. 'Steel'


  Brake Pipe Connector Front Ser 88" to 1980
  Ref: 577679 / Price $6.25
  Application: Series III 88" up to 1980. Shaped brake pipe connecting between flex hose RTC5903D
(excl. 1 Ton) and brake cylinder. Length approx 7.0"
Allmakes part comes straight


  Brake Pipe Connector Front Ser 109" to 1980
  Ref: 537763 / Price $5.45
  Application: Series III 109" up to 1980. Unshaped brake pipe connecting between flex hose RTC5903D
(excl. 1 Ton) and brake cylinder. Length approx 7.5"

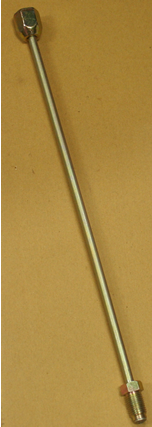

  Brake Pipe Front - Post 1980
  Ref: NRC4257 / Price $5.95
  Application: Series III Post 1980 - Single and Dual Line Front - Between Cylinder and Flex Line - 9.5"


  Switch - Shuttle Valve - OEM - Britpart
  Ref: AAU1700 / Price $69.95
  Application: Defender dual circuit brakes


  Shuttle / Brake Bias Valve
  Ref: 599443 / Price $339.00
  Application: Series Dual Line Systems


  Single Brake Line Clip
  Ref: 79123 / Price $0.78
  Application: Series (all)


  Single Brake Line Clip
  Ref: CRC1250L / Price $0.40
  Application: Series (all) - Various Aps - Holds 3/16 Kunifer Line - A cheaper alternative to 79123


  Double Brake Line Clip
  Ref: 79125 / Price $0.70
  Application: Series (all)


  Double Brake Line Clip
  Ref: 79127 / Price $0.65
  Application: Series (all) both 3/16"


  Mounting Bracket - Genuine - NLA
  Ref: 577697 / Price $19.95
  Application: Series (all)


  Cable Clip
  Ref: 56666 / Price $1.25
  Application: Series 88 & 109 single and dual systems


  Rubber Grommet
  Ref: 6860L / Price $0.89
  Application: Series 88 & 109 single and dual systems


  Brake Pipe Clip
  Ref: 41379 / Price $5.95
  Application: Series (all)


  Brake Pipe Clip - Double NLA
  Ref: 538768 / Price $2.65
  Application: Series (all)


  Plug
  Ref: AFU2627 / Price $6.95
  Application: Plug for access holes in sides of brake pedal box with servo -
1 5/8" Diameter Hole


  Seal PedalBox - currently out of stock
  Ref: MUC7505 / Price $6.25
  Application: Series (all)


  Pedal Box Inspection Plate
  Ref: 272713 / Price $23.95
  Application: Series


  Pedal Box Inspection Plate Gasket
  Ref: 272819 / Price $2.49
  Application: Series


  Brake Shoes 88" 'Mintex'
  Ref: STC2796M / $69.95
  Application: Series 88" front or rear
Description: Higher quality replacement shoes from Mintex - Made in Italy


  Brake Shoes 88" 'Ferodo'
  Ref: STC2796F / $57.95
  Application: Series 88" front or rear
Description: High quality replacement shoes from 'Ferodo'



  Brake Shoes 88"
  Ref: STC2796 / $44.95
  Application: Series 88" front or rear



  Locker - Brake Shoe Retainer 88"
  Ref: 236995 / Price $2.95
  Application: Series 88" up to June 1980 - 4 required


  Screw - Brake Shoe Retainer
  Ref: RTC207 / Price $2.34
  Application: Series 88" up to June 1980


  Locker for Brake Back Plate
  Ref: 277311 / Price $0.75
  Application: Series (all)


  Brake Drum - Allmakes
  Ref: 591661 / Price $48.95
  Application: Series 88" Front and Rear, 1948 - 1969. Uses the smaller screw in wheel studs 561590 9/16"


  Ref: 591039 / Price $52.95
  Application: Series 88" Front and Rear, Front from 1969 to June 1980. Post 1980 Series 88" changed to the 11 inch drum.



  Brake Drum - 109 11"
  Ref: 516599 / Price $55.95
  Application: Series 109 Front and Rear. Fits trucks with screw in wheel studs #561590 9/16"


  Ref: 576973 / Price $54.95
  Application: Series 109 Front and Rear, Front 88 from July 1980. Fits trucks with push in wheel studs #576825 16mm



  Brake Drum 11" 6Cyl and 109V8
  Ref: 576974 / Price $135.00
  Application: Series 6 Cylinder and Stage One V8


  Brake Drum Screw
  Ref: 1510 / Price $0.65
  Application: Series (all)


  Brake Shoe Retraction Spring 'top' 88"
  Ref: 503981 / Price $2.00
  Application: Series 88" Drums front and rear
Description: 88" brake shoes upper retracting spring


  Brake Shoe Retraction Spring 'lower' 88"
  Ref: 218983 / Price $2.00
  Application: Series 88" Drums front and rear
Description: 88" brake shoes lower retracting spring


  Brake Shoes 109" Front "OE" Mintex
  Ref: STC3944G / Price $78.95
  Application: Series 109" Front
Description: OE bonded shoes. Superceded from RTC3417


  Brake Shoes 109" Front
  Ref: STC3944 / Price $34.95
  Application: Series 109" Front
Description: bonded shoes from Allmakes 4X4. Superceded from RTC3417


  Brake Shoes 109" Rear - Mintex
  Ref: STC2797G / Price $66.95


Application: Series 109" Rear
Description: Mintex set of bonded shoes
Superceded from RTC3418



  Brake Shoes 109" Rear


Ref: STC2797 / Price $42.00


  Application: Series 109" Rear - Replacement shoes - bonded - Superceded from RTC3418


  Spring Shoe Return 109" Front
  Ref: 234889 / Price $2.25
  Application: Series 109 front 11" drums - 4 required


  Brake Return Spring 109" - Rear Top Spring
  Ref: 548169 / Price $2.75
  Application: Series 109" Rear drum brakes top spring - 2 required


  Brake Return Spring 109" Rear Drums bottom
  Ref: 531893 / Price $1.75
  Application: Series 109" Rear drum brakes bottom spring - 2 required


  Brake Shoes - Front
  Ref: STC3945 / Price $49.95
  Application: Series 109 6 Cyl, Stage One V8 109 and 101 Forward Control S/s from RTC3424


  Brake Pedal Return Spring
  Ref: 569701 / Price $2.45
  Application: Series II and IIa. For brake systems without servo


  Brake Pedal Return Spring with servo
  Ref: 569291 / Price $2.95
  Application: Series brake systems with servo


  Brake Adjuster Set
  Ref: RTC3176 / Price $19.95


Application: Series trucks with drum brakes
Description: Brake Adjuster cam kit to service one complete axle. Front or rear SWB or LWB

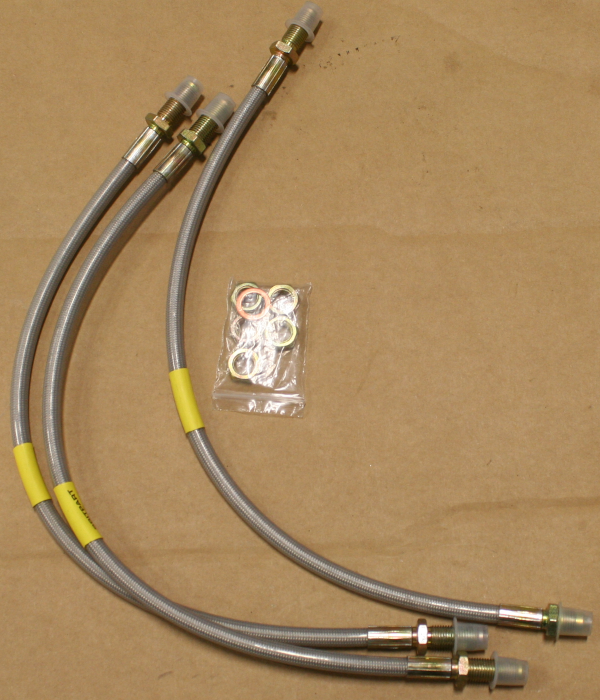

    Brake Hose Set - Stainless Steel
    Ref: DA2418S / Price $50.95


Application: Series SWB - 1960 to June 1980 - imperial - PTFE inner and stainless steel overbraid.



    Brake Hose Set - Stainless Steel + 40mm
    Ref: DA241840S / Price $58.95


Application: Series SWB - 1960 to June 1980 - imperial - PTFE inner and stainless steel overbraid. Extra length for military shackles or parabolics

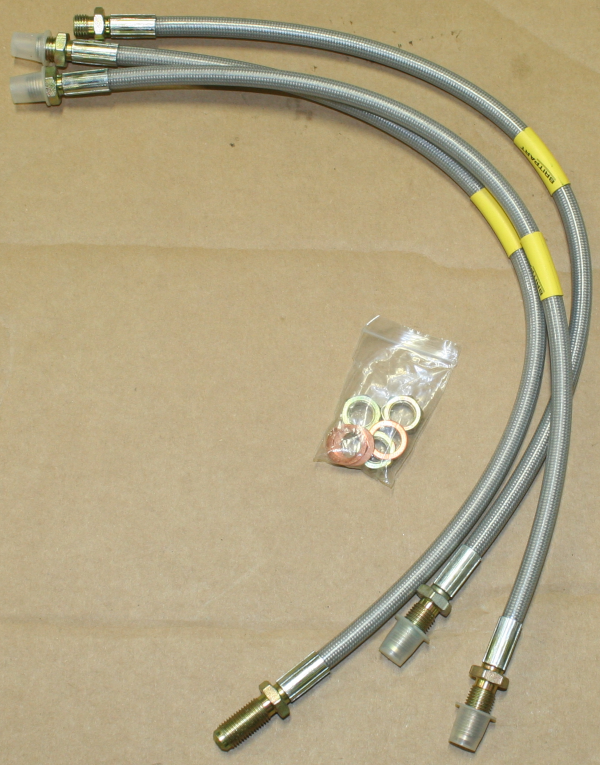

    Brake Hose Set - Stainless Steel
    Ref: DA2420S / Price $50.95


Application: Series LWB - 1960 to June 1980 - imperial - PTFE inner and stainless steel overbraid.



    Brake Hose Set - Stainless Steel + 40mm
    Ref: DA242040S / Price $55.95


Application: Series LWB - 1960 to June 1980 - imperial - PTFE inner and stainless steel overbraid. Extra length for military shackles or parabolics



    Brake Hose Series I 1948 - 1953
    Ref: 219824GIRLING / Price $59.00


Application: Series One - Front and Rear 1948-1953 - Also Clutch Flex Hose late IIA NADA



    Replacement Brake Hose Series 2A & S3
    Ref: RTC3386 / Price: $9.99


Application: Series 2A 88" front and rear, Series 2A 109" front, Series 3 88" rear. Description: Replacement flexible brake hose, overall length 39.5cm (15.6"), thread 3/8UNF



    Replacement Brake Hose Ser2A & Ser3
    Ref: RTC3353 / Price: $9.99


Application: Series 2A and Series 3 109" rear to 1980. Description: Replacement flexible brake hose, overall length 44cm (17.3"), thread 3/8UNF.





  Replacement Brake Hose Series 3
  Ref: RTC5903 / Price: $11.99


Application: Series 3 88" and 109" front with imperial thread to 1980. Description: Replacement front brake hose. Approximate dimensions: Overall length 37cm (14.6"), thread 3/8UNF





  Replacement Brake Hose Series 3
  Ref: 577681 / Price: $13.89


Application: Series 3 front with imperial thread to 1980, this is intended for 109 1 ton models with extended shackles, but can be used where extra hose length is required. Direct replacement of RTC5903. Description: Replacement front brake hose. Approixmate dimensions: Overall length 41cm (16.1"), thread 3/8 UNF.



  Brake Hose - Front
  Ref: NRC9457 / Price $14.95
  Application: Front Pipes 88 and 109 single line and dual line systems from July 1980 - 1984 and 109 V8 from July 1980 - 1984


  Brake Hose 88 Rear - Metric
  Ref: NRC9458 / Price $9.95
  Application: 88" from July 1980 - Metric Hose


  Brake Hose Rear - Metric
  Ref: NTC3458 / Price $19.95
  Application: Series III 109 V8 July 1980>, Range Rover Classic '86 - '94, Discovery I


  Gasket - Copper
  Ref: 233220 / Price $0.75
  Application: Brake Line Copper Washer IIa


  Starlock Washer 3/8"
  Ref: WF600061L / Price $0.40
  Application: Series (all)


  Nut - Brake Hose
  Ref: NT606041L / Price $0.32
  Application: Series (all)
